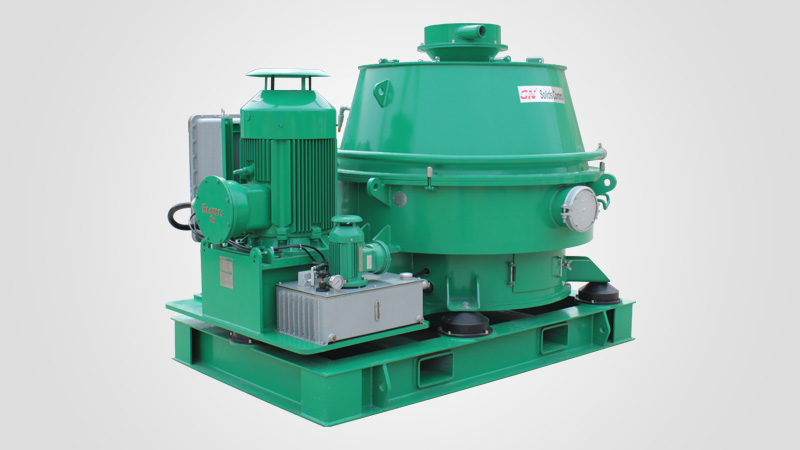

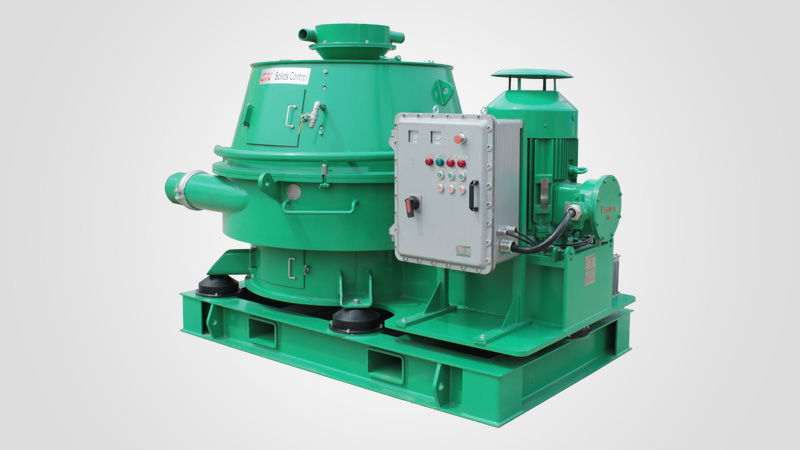

Vertical Screen Scroll Centrifuge

GN Vertical Screen Scroll Centrifuge is designed for solids and liquid separation. It is also called conveyor discharge centrifuge or worm screen centrifuge. GN build vertical screen scroll centrifuge for industrial separation. The main application is to dry the solid material like coal ,mining solids, construction mud or gravel, drilling cuttings , chemical material, environmental solids. Also it can be used for chemical, environmental, food industry for separation of crystalline, granular or fibrous materials from a solid-liquid mixture.

GN Vertical Screen Scroll Centrifuge Specifications

Model	GNCD930E-GP	GNCD930E-VFD
Capacity	40~60 Tons/H
Surface Moisture	4 % - 10% Depends on Material
Screen Max Diameter	930mm
Screen Opening	0.25/0.35/0.5mm
Rotation Speed	900RPM	0~900RPM
G Force	420 G
Oil Tank Capacity	48L
Air Knife Input Pressure	0.69Mpa
Air Knife Input Capacity	1.8m³/m
Flushing Pump Qty	1pcs
Main Motor	55Kw (75HP)
Oil Pump	0.55Kw(0.75HP)
Flushing Pump Power	4Kw(5.5HP)
Weight	4600Kg	4400Kg
Dimension	2640×1810×1650mm

GN Screen Scroll Centrifuge Working Principle

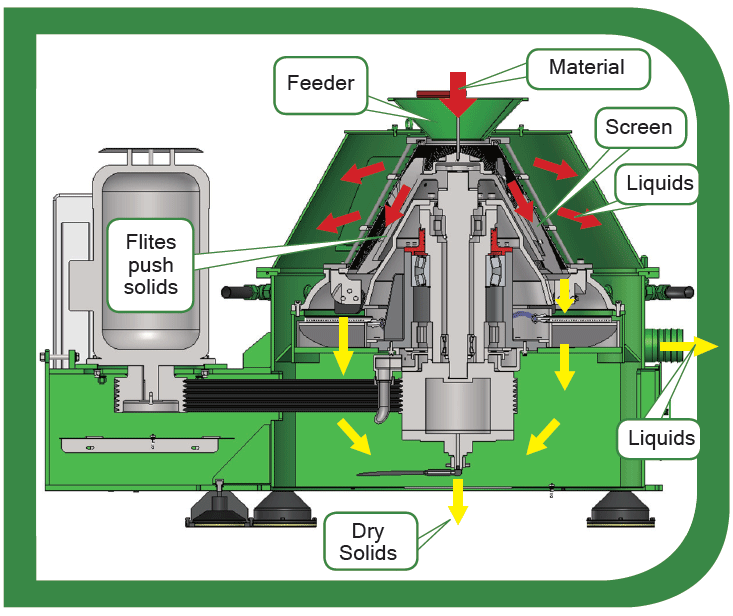

GN Vertical Screen Scroll Centrifuge consists of screen, scroll, basket, flight and housing. The raw material mixed with liquid and solids will be feed to the vertical centrifuge by screw conveyor or other conveying equipment to the top feeder. And as the rotor is running at a high speed, the material is sped up by centrifugal acceleration. The liquid is force to go out from the opening on the screen by the high centrifugal G force. The liquids that have gone through screen are obtained and discharged through effluent outlet from the side of machine As the solids is bigger than the opening on the screen, which cannot pass the screen. The flight and the screen have a differential speed. This differential speed is the reason for the flight to push the solids down to the discharge of the vertical centrifuge which is at the bottom of the machine.

Due to the principle of the screen scroll centrifuge, the limit of the separation depends on the size of the solids, normally it should be bigger than 0.25mm otherwise, the solids will go through the screen opening with the liquid.

Features of GN Vertical Screen Scroll Centrifuge

INCREASED CAPACITY: Compared to horizontal screen scroll centrifuge, the, the Vertical Screen Scroll Centrifuge has higher capacity.
Reduced FOOTPRINT: Vertical centrifuge footprint is less than the horizontal centrifuge.
Minimized Moisture: The increased screen area and greater dewatering efficiency makes the GN vertical screen centrifuge to produce material will less moisture.
Ease of Maintenance: The flights are high-chromium alloy with tungsten carbide hard facing to be abrasion resistant for longer operation.
