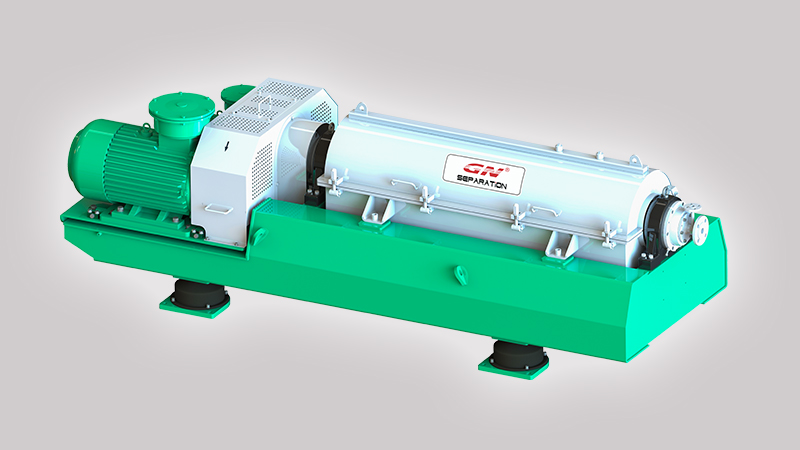

Clarifying Decanter Centrifuge ( C Series)

GN Clarifying Decanter Centrifuge is C series decanter centrifuge with beach angle of 20 degree. GN Clarifying Decanter Centrifuges are designed for the continuous separation of suspensions into solids and clarified liquid, without interrupting the feed of the suspension.
Request a Quote
DOWNLOAD BROCHURE
Description
Parameter

  • GN Clarifying Decanter Centrifuge is C series decanter centrifuge with beach angle of 20 degree. GN Clarifying Decanter Centrifuges are designed for the continuous separation of suspensions into solids and clarified liquid, without interrupting the feed of the suspension. It suits for material of small particle size, low density difference between solids and liquid, moderate viscosity, moderate concentration.

    Applicable Material for Clarifying Decanter:

    • Edible oil: separation and extraction of palm oil, olive oil, sesame oil, fish oil and other crude oils
    • Pectin: extraction and separation of pectin from fruits and vegetables such as apple, citrus, beet
    • Plant protein: separation and extraction of plant protein such as soybean protein, pea protein, potato protein
    • Animal protein: separation and extraction of animal protein such as fish meal protein, pig brain protein, casing protein, etc.
    • Starch: separation and extraction of plant starch such as wheat starch, corn starch, cassava starch
    • Juice: extraction of juice from a variety of fruits, berries and vegetables
    • Biofuel: treatment and recycling of fuel ethanol, distiller grains, and spent grains
    • Others: beverage industry, fruit, vegetable and food industry, the clarification, extraction and recycling of animal raw materials.

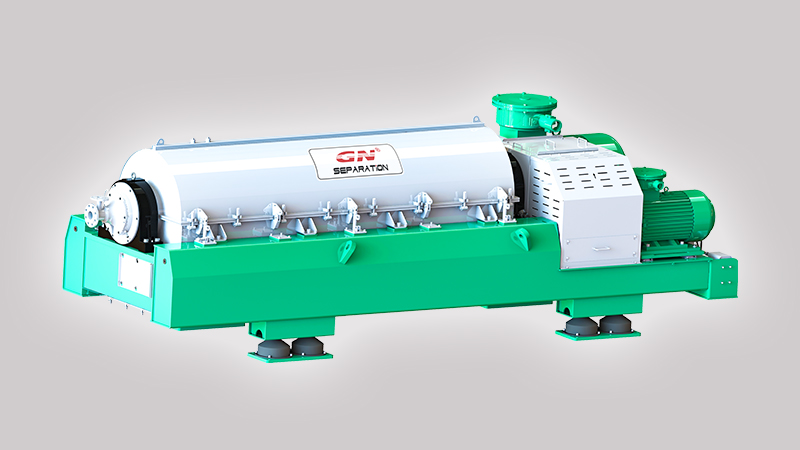

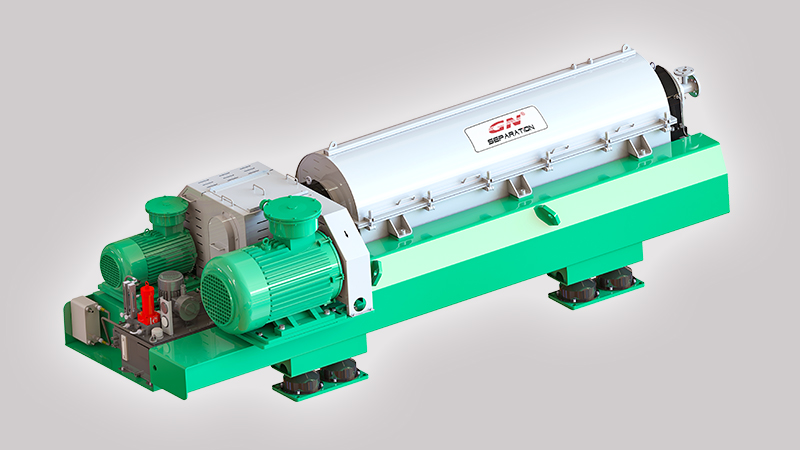

    C-Decanter-Centrifuge-2C-Decanter-Centrifuge-3

    C series Clarifying Decanter Centrifuge Specification

    ModelGNLW-224FCGNLW-364FCGNLW-454FCGNLW-554FCGNLW-654ECGNLW-764A
    Bowl Diameter 220 mm
    (9 Inch)    		 360 mm
    (14 Inch)    		 450 mm
    (18 Inch)    		 550 mm
    (22 Inch)    		 650 mm
    (25.6 Inch)    		 760 mm
    (30 Inch)
    Bowl Length 924 mm
    (36.4 Inch)    		 1512 mm
    (59.5 Inch)    		 1890 mm
    (74.5 Inch)    		 2310 mm
    (91 Inch)    		 2730 mm
    (107.5 Inch)    		 3328 mm
    (131 Inch)
    Max Bowl Speed 5099 RPM 3986 RPM 3452 RPM 3123 RPM 2873 RPM 2612 RPM
    Max G Force 3200 G 3200 G 3000 G 3000 G 3000 G 2900 G
    L/D Ratio 4.2 4.2 4.2 4.2 4.2 4.4
    Main Motor 11 KW 22/30 KW 37/45 KW 55 KW 90 /110KW 110 /132KW
    Back Motor 5.5 KW 7.5 KW 11/15/18.5 KW 15 /18.5KW 18.5 /22/30KW 22/30/37 KW
    Beach Angle 20°
    Drive Type VFD+PLC+ HMI
    Bowl Material SUS2304(Duplex Stainless Steel)/ SUS2205(Duplex Stainless Steel) Centrifugal Casting
    Screw Material SUS2304(Duplex Stainless Steel)/SUS2205(Duplex Stainless Steel)
    Remarks
    • The P-Series,Y-Series,C-Series decanter are interchangeable by replacing bowl assembly.
    • Final specifications should be based on commercial and technical offer.
    • Customized materials of the decanter centrifuge are available for option.
    The above specification and parameters for reference only.

    C series Clarifying Decanter Centrifuge Features

    • The beach angle of the C series clarifying decanter centrifuge is 20 degree, so the bowl cone section for dewatering is short but the straight section of the bowl is longer. This will give the decanter bowl to have a longer clarifying section.
    • C series Clarifying Decanter Centrifuge can be designed and manufactured according to the health requirements applicable to the food and pharmaceutical field to meet the requirements of washing and health protection in the food and pharmaceutical field.
    • The shaft caps on the two ends and the bowl are made of duplex stainless steel SUS2205 or SUS2304 by centrifugal casting, which is superior to the performance of SUS304 and SUS316. The main parts are made by centrifugal casting and die forging process to avoid intergranular corrosion and incomplete residual stress release caused by traditional welding process.
    • The screw blade is pressed by the CNC spiral blade forming equipment. Compared with the traditional drawing screw blade, it has higher slag conveying efficiency than the traditional drawing screw blade.
    • According to the material properties, the screw blade can adopt gradual change type, which can obviously improve the efficiency of screw’s transport and press force to make the solids dryer.
    • Optimized beach angle and pitch, large beach angle and medium pitch with BD baffle plate make the dewatering zone separated from the sedimentation zone. The depth of the liquid pool is deeper and the dewatering zone is longer. The separated clear liquid is more clear and dry, and the processing capacity is larger. The deep liquid pool loses less kinetic energy when the clear liquid is discharged. The machine consumes less energy and is more energy efficient. At the same time, it has a material acceleration structure to reduce turbulence in the bowl to make the liquid more clear, reduced turbulence makes the screw flight discharge port better protected for anti-abrasion, so the screw conveyor has a longer service life.
    • For special high-concentration and high-viscosity materials, a double cone design can be used, that is, the cone drum has two beach angles. The double beach angle greatly improves the resistance of slag discharge, and increases the treatment capacity under the condition of increasing the slag dryness and liquid clarity.
    • The wear-resistant sleeve of the solid discharge port is a special hard tungsten carbide sleeve, of which the wear resistance is extremely high, and not fragile.
    • The overflow weir plate has a convenient and flexible design for adjusting the depth of liquid pool to meet the requirements of dryness and wetness and clarity of materials under various working conditions.
    • The collection box cover of the small model is assisted to open by a gas spring, and it can support and protect safety.
    • The large model adopts a labor-saving lid opening device, and a single person can lift the lid of the collection box, reducing the labor intensity of workers and facilitating equipment maintenance.
    • Each type of main bearing is designed with hydraulic disassembly structure, which reduces the tension required to remove the main bearing by 90%, and reduces the risk of damage to the bearing itself and the high precision parts when the bearing is removed.
    • After each main rotary parts are machined by high precision CNC equipment, the centrifuge is treated with three dynamic balance processing again, including the 1800RPM medium speed dynamic balance in the main rotary body component, the actual working speed high speed dynamic balance and the whole machine balance, so as to ensure the stable operation of the centrifuge under the high speed working condition.
    • The screw propeller is protected by replaceable wear-resistant alloy plate with long service life and easy maintenance.
    • Some models adopt the open-type screw blade, greatly enhancing the centrifuge processing capacity. Screw propeller utilizes stainless steel, after high temperature solution treatment, not easy to deform, good corrosion resistance, good strength stiffness, and long service life.
    • Two motors are arranged at one end of the centrifuge saving much space; the structure is compact for the operation and maintenance of the centrifuge, while avoiding the accident of the motor damage caused by the material leakage at the inlet end.
    • Main bearing adopts premium SKF series high-end bearings with long service life. Depending on the user's choice, it can also be equipped with an automatic lubrication system.
    • The grease lubrication system for the main bearing of the small model can be equipped with a semi-automatic or fully-automatic batch grease lubrication system, which can provide full and reliable lubrication for the main bearing, reduce the labor intensity of the workers and improve the service life of the bearing.
    • The main bearing of the large machine adopts the oil injection automatic circulation lubrication system, which has the function of cleaning and cooling the main bearing, and the service life of the main bearing is greatly improved.
    • With complete machine monitoring and alarm system. When overload, short circuit and lack of phase occur in the course of operation, the centrifuge will be automatically protected; the speed of centrifuge, bearing temperature, vibration of the whole machine, lubrication system oil pressure, main and back motors’ current, push torque and other operating parameters are monitored in real time, and alarm is started when the parameters are abnormal. In case of blocking materials, the device will automatically switch to the plugging procedures; if plugging procedures cannot be dredged, it will then automatically switch to the shutdown procedures to ensure the safety of personnel and equipment.
    • Usually adopts stainless steel electric control panel equipped with world famous VFD, PLC, HMI and other electric components. According to user requirements, GN can also provide VFD control panel with explosion-proof certificates home and abroad, such as China's CNEX explosion-proof, ATEX explosion-proof and IECEX explosion-proof.

    GN can not only provide users with high-tech Clarifying Decanter Centrifuge, but also provide users with Clarifying Disc Separator with high rotating speed and G force is up to 12000 G, which can carry out multi-step clarification treatment for users' materials, so as to achieve the most desired effect for customers.
