GN Separation Equipment Manufacturer

With the rich experience in providing the separation solution, GN released a series of equipment and turnkey solution that could be used for mining slurry treatment. The solutions are mainly consisting of dewatering equipment and conveying equipment for disposing the mining ore classification and tailing slurry dewatering.

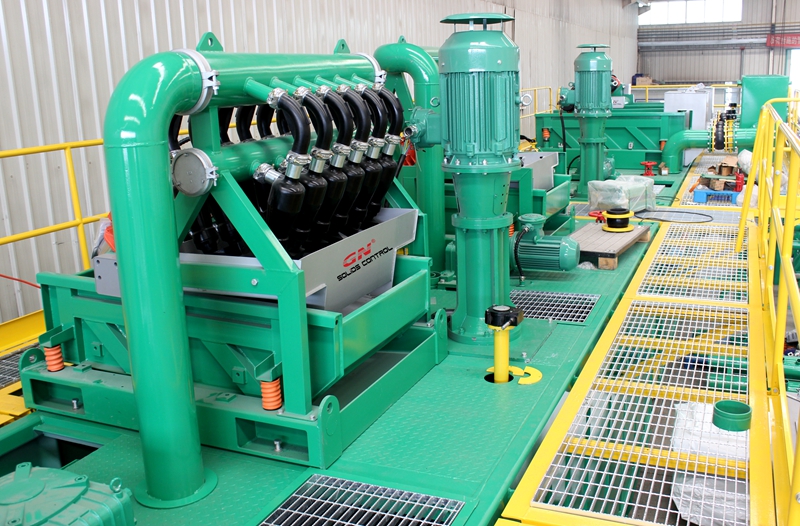

1. Mining slurry dewatering system – GN mining slurry dewatering system includes a series separation equipment and slurry pump for the recycling of water used for ore washing and collecting the ore step by step. Mining detailing dewatering centrifuge is key equipment in the mining slurry dewatering system. With the compact structure and high speed, the decanter centrifuge is always used as the large capacity tailing slurry dewatering equipment. Its capability of continuously working greatly increases the working efficiency.

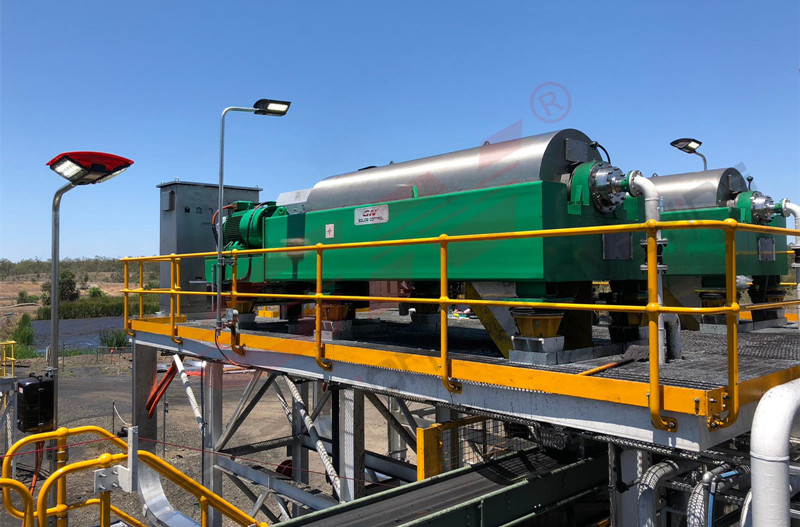

 GN Mining Tailing Slurry Dewatering Centrifuge Case Study

Project Location: Australia
Decanter Centrfuge Model: GNLW764 (30 inch bowl diameter)
Slurry Type: Coal Mine Tailing Slurry Treatment (Click for working video on site)
Actual Handle Capacity: Max. 120 cubic meters per hour

The client order 2 sets GNLW764 dewatering centrifuge each of which weighs 17 metric tons. Supporting frames were fabricated locally, GN decanter centrifuge were installed on it. In consideration the large solid content in coal slurry, GN adopts the tungsten carbide plate or bushing to be built at the easy-wearing point to ensure the long working life and applied the oil pump lubrication circulation system to guarantee the continous heavy duty loading. GNLW764 is a robust machine for the mine tailing slurry treatment facility.

2. Mining slurry transfer pump – GN vacuum sludge pump, different from other type sludge pump, is a fully pneumatic pump that can be used for transferring of liquid, wet sludge and even solids. It is small footprint and movable, all suction and discharge line are hose type, which makes he pump can be flexibly located at site.

For more information on GN mining application separation and conveying equipment, please feel free to contact with us.
