Horizontal Vibratory Centrifuge for Coarse Coal

GN Horizontal Vibratory Centrifuge for Coarse Coal is used for dewatering of coarse coal in coal washing plants, and well-applied coal particle range is 0.5-5mm.
Request a Quote
DOWNLOAD BROCHURE
Description
Parameter

  • GN Horizontal Vibratory Centrifuge for Coarse Coal is used for dewatering of coarse coal in coal washing plants, and well-applied coal particle range is 0.5-5mm. The Horizontal Vibratory Centrifuge combines vibration and centrifugal force to realize high efficient dewatering performance of coarse coal particles. GN Horizontal Vibratory Centrifuge for Coarse Coal is a serialized product with the diameters of the screen basket varying from1000mm to 1600mm, which meets the processing capacity demand from 80t/h to 350t/h. After dewatering process by GN Horizontal Vibratory Centrifuge, the surface moisture on the coal is 5%-9%.

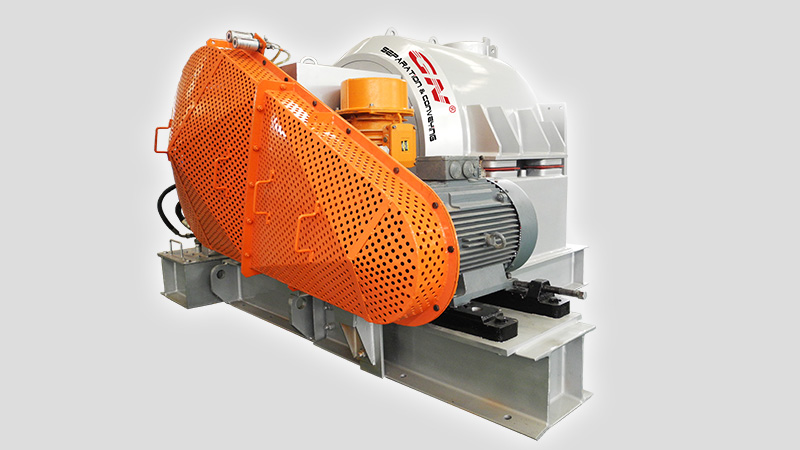

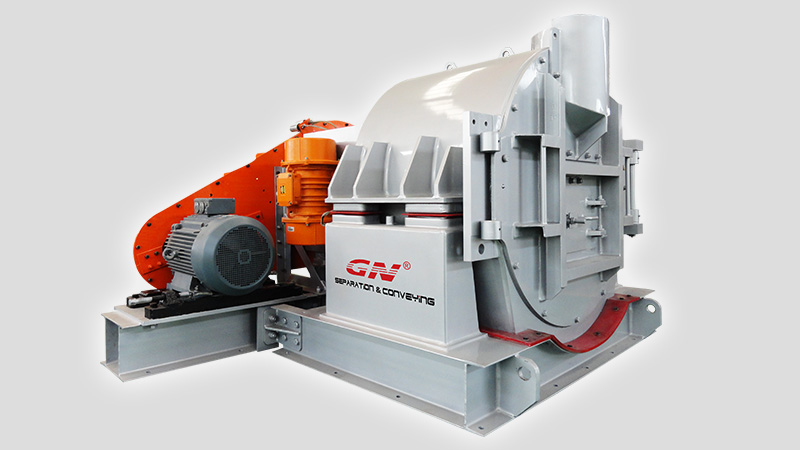

    Vibratory Centrifuge 1Vibratory Centrifuge 2

    Horizontal Vibratory Centrifuge Technical Specifications

    ModelGNVC-1000GNVC-1100GNVC-1200GNVC-1300GNVC-1400GNVC-1500GNVC-1650
    Screen Basket
    Diameter (mm)    		 1000mm 1100mm 1200mm 1300mm 1400mm 1500mm 1650mm
    Screen Angle 13° 15°
    Screen Opening
    (mm)    		 0.5mm
    Capacity
    (t/h)    		 80t/h 120t/h 160t/h 200t/h 250t/h 300t/h 350t/h
    Speed (rpm) 350RPM 330RPM 320RPM 310RPM 300RPM 290RPM 280RPM
    Main Motor
    Power (kw)    		 22KW 30KW 30KW 37KW 45KW 55KW 75KW
    Vibration Motor
    Power (kw)    		 2x3KW 2x4.98KW 2x4.98KW 2x5.67KW 2x5.67KW 2x8.6KW 2x8.6KW
    Feeding Particle
    Size (mm)    		 0.5-50mm
    Feeding Surface
    Moisture    		 小于30%
    Product Surface
    Moisture    		 6-9%

    Horizontal Vibratory Centrifuge Model Description

    • GN – Brand of GN Separation & Conveying
    • VC- Vibratory Centrifuge
    • 1000 - Screen basket large end diameter of Horizontal Vibratory Centrifuge

    Horizontal Vibratory Centrifuge Features

    • High recovery and low crushing rate for the coarse coal, with low power consumption per ton.
    • International famous brand vibration motor with convenient and easy amplitude adjustment
    • Wear-resistant lining for the inlet and outlet to reduced wearing to the equipment
    • All the wear-resistant parts are made of high wear-resistant materials to extend the service life
    • Main bearing adopts international famous brands such as SKF, FAG or NSK
    • Few wear parts and low maintenance cost
    • Horizontal installation taking up small area and easy to assemble & disassemble
    • Large processing capacity, and high upper limit of feed size
    • High reliability, smooth operation, and low noise

    As an international brand for manufacturing Horizontal Vibratory Centrifuge for Coarse Coal, GN Company has exported products to more than 60 countries and regions in the world, and set up branches in Houston, USA, and offices in Russia. GN Company can provide clients with high-quality products and professional service. Welcome to visit GN factories, and we would supply suitable Horizontal Vibratory Centrifuge for Coal Coal according to clients’ different requirement.
