Horizontal Screen Scroll Centrifuge for Fine Coal

GN Horizontal Screen Scroll Centrifuge for Fine Coal is used for fine coal dewatering in coal washing plant, and well-applied coal particle range is 0-3mm.
Request a Quote
DOWNLOAD BROCHURE
Description
Parameter

  • GN Horizontal Screen Scroll Centrifuge for Fine Coal is used for fine coal dewatering in coal washing plant, and well-applied coal particle range is 0-3mm. The fine coal with water in this particle range is also called coarse slime. GN Horizontal Screen Scroll Centrifuge can remove the moisture in the fine coal or coarse slime by a high centrifugal force, and the coarse slime is discharged due to the differential speed between the scraper and the screen basket. GN Horizontal Screen Scroll Centrifuge adopts horizontal installation design to replace the traditional vertical scraper discharge centrifuge. The advantages are as following of that the replacement of wear parts can be realized in the horizontal direction, the height of the workshop is greatly reduced, the failure rate is lower, and the stability is better, which is the development trend of coarse slime dewatering equipment at home and abroad. GN Horizontal Screen Scroll Centrifuge for Fine Coal is a serialized product; the screen basket diameter is from 900mm to 1200mm, which meets the processing capacity demand from 30 tons/h to 120 tons/h. After dewatering by GN Horizontal Screen Scroll Centrifuge, the surface moisture of coarse slime is about 12-16%.

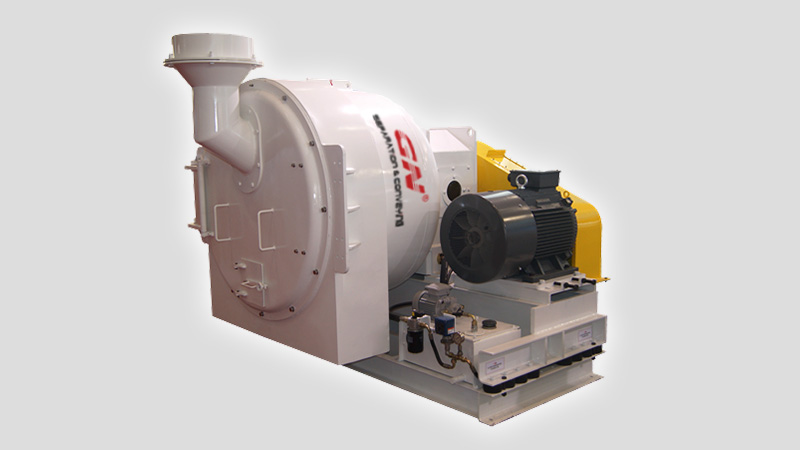

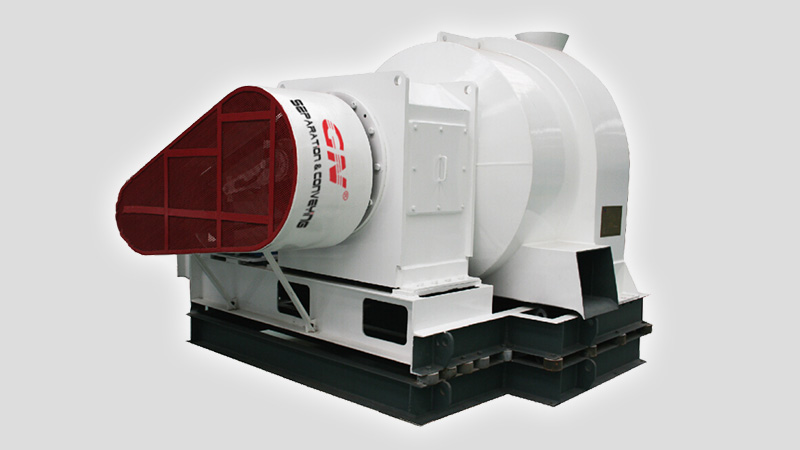

    Horizontal Screen Scroll Centrifuge 1Horizontal Screen Scroll Centrifuge 2

    Horizontal Screen Scroll Centrifuge Technical Specifications

    ModelGNSCC-900GNSCC-1000GNSCC-1200
    Feeding Particle Size 0-3mm
    Screen Basket
    Opening (mm)    		 0.25/0.35/0.5mm
    Feeding Moisture ＜30%
    Capacity (t/h) 30～50 t/h 40～60 t/h 60～120 t/h
    Product Surface Moisture 12～16 %
    Main Motor
    Power (kw)    		 55 75 75
    Weight (kg) 4000 4500 5500

    Horizontal Screen Scroll Centrifuge Model Description

    • Brand of GN Separation & Conveying
    • SSC- Screen Scroll Centrifuge
    • Screen basket big end diameter of Horizontal Screen Scroll Centrifuge

    Horizontal Screen Scroll Centrifuge Features

    • Horizontal installation, low factory height requirements, easy for maintenance
    • All the wear-resistant parts are made of high wear-resistant materials to extend the service life
    • Main bearing adopts international famous brands such as SKF, FAG or NSK
    • High separation factor, strong dewatering ability for coarse slime
    • High reliability, stable operation and low noise
    • The opening diameter of the screen basket can be customized to meet the dewatering requirements of different slime

    As an international brand for manufacturing Horizontal Screen Scroll Centrifuge for Fine Coal, GN Company has exported products to more than 60 countries and regions in the world, and set up branches in Houston, USA, and offices in Russia. GN Company can provide clients with high-quality products and professional service. Welcome to visit GN factories, and we would supply suitable Horizontal Screen Scroll Centrifuge for Fine Coal according to clients’ different requirement.
